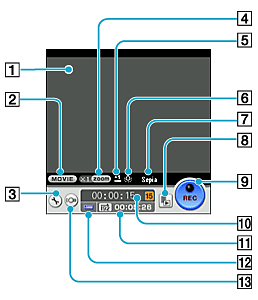

Locating parts and controls of Movie Recorder

< PEG-NX80V >

[1] Viewfinder

Displays the image the camera is currently seeing.

[2] CLIE Camera button

Starts the CLIE Camera application.

[3] Preference button

Displays the Preference screen. You can change the settings such as effect and quality.

[4] Zoom button

Specifies the currently selected zoom setting.

[5] Brightness indicator

Displays the current brightness setting.

[6] White Balance indicator

Displays the current white balance setting.
When it is set to Auto, nothing will be indicated here.

[7] Effect setting indicator

Displays the currently selected effect.

[8] Movie Player button

Starts the Movie Player application.

[9] REC button

Tap this button to start recording movies with the camera. Tap again to stop recording.

[10] Recording time indicator

Displays the running time of the current movie file. When you set a time limit to the recording on the Preference screen, the selected time will be indicated on the right side.

[11] “Memory Stick” remaining time indicator

Displays the remaining recordable time on the “Memory Stick(TM)” media. The indicator flashes when there is approximately one minute left to record.

Note

You may not be able to start recording even when the indicator shows one second remaining on “Memory Stick(TM)” media.

[12] “Memory Stick(TM)” media indicator

Displays “Memory Stick(TM)” media icon when there is one inserted in your CLIÉ(TM) handheld. The icon flashes when there is no “Memory Stick(TM)” media inserted.

[13] CAPTURE light button (PEG-NX80V only)

Turns on the light built into your CLIÉ(TM) handheld.
