Importing audio files into your computer (in ATRAC3 format)
Importing ATRAC3-format audio files into your computer
Using the SonicStage Ver.1.5 software, you can manage ATRAC3-format audio files recorded on your computer as a “Playlist”.
Install the SonicStage Ver.1.5 software on your computer from the supplied Installation CD-ROM. For detail on installation, see “Installing the SonicStage Ver.1.5 software” and the supplied Read This First manual.
Before installing the SonicStage Ver.1.5 software, read “Requirements for SonicStage Ver.1.5”.

To manage audio files with the SonicStage Ver.1.5 software, you need to store audio files on the hard disk of your computer. There are three ways to import audio files into the SonicStage Ver.1.5 software on your computer:
• record audio CDs onto the hard disk
• import songs via EMD
• import MP3, WAV, and WMA files by converting it to ATRAC3 format (Some files does not converted into ATRAC3 format. See SonicStage Help for details. To play MP3 files without converting them into ATRAC3 format, skip this section and go to “Transferring audio files from your computer to your CLIÉ handheld”)

1
Double-click the SonicStage icon on the Windows desktop.
Or, click Start, point to Programs (All Programs in Windows XP), SonicStage, and then click SonicStage.
The SonicStage Ver.1.5 software starts.
2
Insert the audio CD you want to record into the CD-ROM drive of your computer.
When recording from an audio CD in your CD-ROM drive for the first time, the CD Drive Optimization dialog box appears when you insert the audio CD, in order to check that the CD-ROM drive can perform the recording properly. Click Start to verify your CD-ROM drive.
3
Click on the main window.

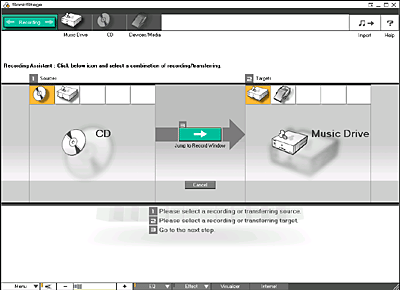

Recording Assistant screen appears.
4
Click [CD] for Sources and click [Music Drive] for Targets.
5
Click (Jump to Record Window)

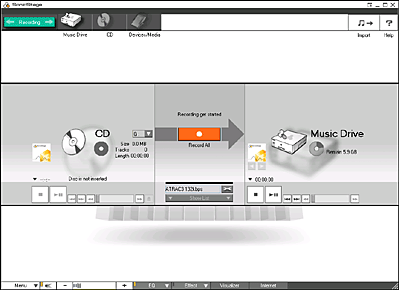

The Record window appears.
6
Click .
The List Area appears below the Record window. The songs in the audio CD will be listed in the List Area on the left side.
7
Click .
CD Recording Format [Music Drive] window appears.
8
Select the format and bit rate for recording as necessary.
Select OpenMG (ATRAC3) format and a desired bit rate. You will hear a better sound when you select higher bit rate, but the data size of the converted audio file will be larger.
9
Start recording.
To record all songs on the audio CD, click (Record All).
To record specific songs, click on the song numbers (track numbers) of the undesired songs to clear the check box and then click (Start Rec).
To stop recording
Click (Rec Stop).
The recording stops.
To add songs to an existing Playlist
1 On the left side of the list area, click on the check box to select the songs that you want to record.
2 On the right side of the screen, click the Playlist to which you want to add songs to.
3 Click (Start Rec).
The recording starts.
About Bit Rates
In the SonicStage Ver.1.5 software, the bit rate for recording an audio CD can be chosen from 132 kbps/105 kbps/66 kbps. The sound quality and available recording time after the conversion will be different depending on the selected bit rate. A Higher value makes the sound quality better, but the size of the recorded data file will be bigger thus shortening the total Check-Out time available on your CLIÉ handheld.
Likewise, a lower value means lower sound quality, but lengthens the total Check-Out time available on your CLIÉ handheld.
When you use 128 MB “MagicGate Memory Stick” media, you can record for approximately the following length of time:
• When you record at 132 kbps: approx. 120 min.
• When you record at 105 kbps: approx. 160 min.
• When you record at 66 kbps: approx. 240 min.

To enter a title for an album or a track
You can enter the title by typing on the keyboard, or by using the titles stored on the HDD CD database on your computer or a database on the Internet.
See the SonicStage Ver.1.5 Help files for details.
Importing songs via EMD
What is an Electronic Music Distribution (EMD) service?
EMD stands for Electronic Music Distribution, which is a generic name for services that distribute digital audio content via the Internet or other kinds of networks.
Downloading audio files from EMD service websites
You must be able to access the Internet from your computer. Sign up with an Internet service provider, properly configure your computer, and configure the settings of your Web browser before using this service.
Tip
The OpenMG Home Page provides a guide to EMD service websites that support OpenMG and information on how to use EMD services.
Refer to this OpenMG Home Page for more information about importing audio files using EMD services.
1
Access the website of an EMD service.
EMD services supporting the OpenMG technology are introduced on the OpenMG Home Page.
• To access the sites from the SonicStage Ver.1.5 software
(1) Double-click the SonicStage icon on the Windows desktop, or click Start, point to Programs (All Programs in Windows XP), SonicStage, and then click SonicStage.
The SonicStage Ver.1.5 software starts.

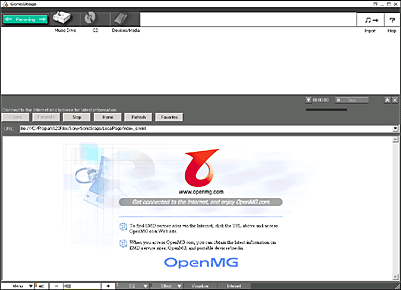

(2) Click the Internet tab to display the Internet window.
An introduction to the OpenMG Home Page appears on the window.
(3) Click the button or logo on the window.
The connection to the Internet starts and the OpenMG Home Page appears. Follow the instructions to access the EMD service websites.
• To access the sites from another Web browser:
On your Web browser window, display the Web page of an EMD service directly or from a link in the OpenMG Home Page (http://www.openmg.com/us/).
2
Click an audio file for downloading (MP3 files or WMT-compatible files).
Downloading starts automatically.
If you click an audio file that requires purchasing, the default Web browser starts up to display the online transaction page.
After the process is completed, the audio file is allowed to be imported into the SonicStage Ver.1.5 software.
3
Import downloaded audio files into the SonicStage Ver.1.5 software.
If audio files are imported automatically, they are registered as “Download Files” Playlist, determined by the EMD service.
If they are not imported automatically, select the audio files you want in the Import window and then import them into the SonicStage Ver.1.5 software (see “Importing MP3, WAV, and WMA files to the SonicStage Ver.1.5 software”).
Note
Audio files cannot be imported automatically if you use a Web browser (for example, Internet Explorer or Netscape) other than the Internet window of the SonicStage Ver.1.5 software. In this case, specify the audio files in the Import window to import them.
Tip
Some Internet settings (for example, proxy server) are related to the settings of Internet Explorer. If your computer is set to be used within a firewall, etc., confirm the settings of Internet Explorer before the connection.
Note
When specifying the location to be used to store songs, do not choose a folder on removable media, such as a CD-R, CD-RW, MO, or ZIP. Choose a folder on the hard disk of your computer.
Importing MP3, WAV, and WMA files to the SonicStage Ver.1.5 software
You can check out audio files in format not compatible with your CLIÉ handheld by converting them into ATRAC3-format audio files using the SonicStage software. The following audio files can be imported into the SonicStage Ver.1.5 software.
To play MP3 files without converting them into ATRAC3 format, see “Transferring MP3-format audio files to your CLIÉ handheld”.
• MP3 files: 16 bit MP3 files, monaural/stereo, 32 kHz/44.1 kHz/48 kHz.
• WAV files: linear PCM WAV files, 16 bits, monaural/stereo, 32 kHz/44.1 kHz/48 kHz.
• WMA (Windows Media Audio) files downloaded via EMD: 16 bit WMA files compatible with WMT (Windows Media Technology), monaural/stereo, 44.1 kHz. Depending on the copyright protection, some WMA files may not be available for importing.
Notes on importing MP3 files
To import MP3 files into the supplied SonicStage Ver.1.5 software using the Windows(R) 98 operating system, Microsoft(R) Windows Media Player Version 6.4 or later is necessary. If Windows Media Player is not installed on your computer, it can be downloaded from the OpenMG website
(http://www.openmg.com/us/).
If your operating system is Windows(R)98 Second Edition, Windows(R) Millennium Edition, Windows(R) 2000 Professional or Windows XP, Windows Media Player Version 6.4 or later is already installed.
To transfer (Check-Out) songs to your CLIÉ handheld, it is necessary to convert the audio files to be checked out into ATRAC3 format. Audio files converted into ATRAC3 format can be imported to the SonicStage Ver.1.5 software by using the Import feature.
It is also possible to import files in their original format and then convert them into ATRAC3 format when they are checked out.
Importing procedures
You can convert audio files either when you import them into the SonicStage software, or when you check them out from the software to the CLIÉ handheld.
1
Click Import in the upper-right corner of the screen.
The Import window appears.
2
Click Import All.
The File format after import dialog box appears.
3
Select settings.
• File Location: Click on the check box next to the drive or folder in which the audio file is stored.
Click “+” next to the drive or folder to display the sub-folders under the selected drive or folder.
• File types: Select the type of audio file that you wish to import from the drop-down list.
• Import Setup Option: Set the file format after import. Select Always convert to OpenMG(ATRAC3).
4
Click OK.
5
Click Next.
The audio files in the selected file type which can be imported into the Music Drive are listed.
6
Click and clear the check box of the files that you do not wish to import.
7
Click Finish.
Importing of the audio files starts.
When importing is complete, a new Playlist with the same name as the selected folder is created, and the audio files are imported into that Playlist.
Notes
• The original MP3/WAV files imported are referenced by the SonicStage Ver.1.5 software when playing back or checking out the data. Therefore, to prevent moving or deleting the files, copy them to a specific folder on the hard disk before importing them to the SonicStage Ver.1.5 software.
If the original file is stored on removable media and the source media is removed, the following messages are displayed when you try to play back or check out the data.
- For playback: “Cannot play the selected file. The 'song' file can't be found.”
- For Check-Out: “Detected file(s) which cannot be checked out.”
• When the original file is on a network, the same messages are displayed when your computer is not connected to the network.
• When you delete an audio file, note that the original MP3/WAV file is also deleted when you select “Delete the song file from PC.”
Tips
• You can import all of the audio files on the drive dedicated on your computer to the SonicStage Ver.1.5 software at one time. For details, refer to “Importing audio files from your computer” - “Importing songs” in the SonicStage Ver.1.5 Help.
• If the music title is included in the data, as it is in the ID3 data of MP3 format files, the title is displayed in the Title column of the Playlist view of the SonicStage Ver.1.5 software. If the title data is not included, the file name is displayed in the Title column.
Refer to the SonicStage Ver.1.5 Help files for more information
You can display the Help files by either of the following ways:
• Click Start, Programs (All Programs in Windows XP), SonicStage, and then SonicStage Help.
• Start the SonicStage Ver.1.5 software, and then click on the Help icon.
