| Transferring audio files from your computer to your CLIÉ™ handheld |  |
Preparing your CLIÉ™ handheld for file transfer
Notes
| • |
If you want to transfer and play ATRAC3-format audio files that are recorded or converted using the SonicStage software, use “MagicGate Memory Stick™” media. ATRAC3-format audio files cannot be transferred to “Memory Stick™” media. |
|---|---|
| • |
Make sure that the write-protect tab is not set to LOCK when you transfer audio files to a “Memory Stick™” media. |
| 1 |
Tap Applications tab, and tap the Audio Player application icon from the Applications screen.
 |
|---|---|
| 2 |
Connect your CLIÉ™ handheld to your computer using the USB cable.
Note
When you connect the USB cable, be sure to use the Plug adapter.
|
| 3 |
Tap Menu
 , Options, then Transfer.The CLIÉ™ handheld enters the file transfer mode.
 |
Transferring ATRAC3-format audio files to your CLIÉ™ handheld
Prepare your CLIÉ™ handheld as described in “Preparing your CLIÉ™ handheld for file transfer”. You can only use a “MagicGate Memory Stick™” media to transfer ATRAC3-format audio files.
| 1 |
Double-click the SonicStage icon on the Windows® desktop.
|
|---|---|
| 2 |
Click

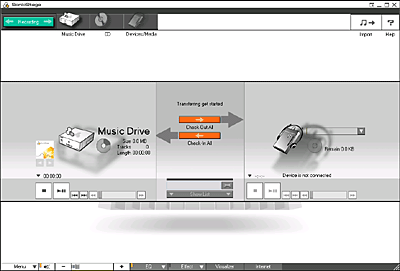

 .The Recording Assistant screen appears.
|
| 3 |
Click [Music Drive] for Sources and click [Device Media] for Targets.
|
| 4 |
Click
 (Jump to Record Window).The Check-In/Out window appears.
 |
| 5 |
Click
 in the Check-In/Out window.The List Area appears below the Check-In/Out window.
|
| 6 |
In the File Tree view on the left side of the window, select the Playlist containing the songs you wish to check-out.
The songs in the selected Playlist are displayed in the List view.
|
| 7 |
In the List view on the left, select the songs to be checked out.
To select more than one song at the same time, hold down the Ctrl key and click the songs to be selected.
|
| 8 |
Click
 (Check-Out).Check-out starts. The selected song(s) will be added to the end of the song list in your CLIÉ™ handheld.
|
To stop Check-Out
Click
(Stop).
(Stop). Note
Once Check-Out has started, do not do any of the following until the Check-In/Out is complete.
|
Disconnect the USB cable. |
|
|
Remove the “MagicGate Memory Stick™” media. |
|
|
Disconnect your CLIÉ™ handheld from your computer. |
|
|
Tap Exit in the Audio Player application. |
|
|
Press any of the application buttons on your CLIÉ™ handheld or tap the HotSync® icon on the screen. |
|
Tap Home  . |
When Check-Out is complete
Tap OK in the Audio Player application’s confirmation dialog box.
The transfer mode is canceled and the previous screen appears.
If you use Windows® 2000 Professional/Windows® Me/Windows® XP Professional/Windows® XP Home Edition operating system, a warning message appears when you tap OK. In this case, click OK.
Transferring MP3-format audio files to your CLIÉ™ handheld
Prepare your CLIÉ™ handheld as described in “Preparing your CLIÉ™ handheld for file transfer”.
Then, copy the MP3-format audio files to the “Memory Stick™” media inserted in your CLIÉ™ handheld using Windows® Explorer.
| 1 |
Double-click the My Computer icon on your Windows® desktop. (For Windows® XP, click Start, and click My Computer.)
|
|---|---|
| 2 |
Double-click the Removable Disk icon.
|
| 3 |
Double-click PALM, PROGRAMS (All Programs in Windows® XP), and then MSAUDIO folder.
If these folders do not exist, create them manually in the “Memory Stick™” media.
|
| 4 |
Drag the MP3-format audio files that you want to transfer to the MSAUDIO folder.
|
You can transfer MP3-format audio files to the “Memory Stick™” media inserted in your CLIÉ™ handheld using the Data Import/Data Export applications. Refer to the manual for Data Import/Data Export application manual.
If your computer has a “Memory Stick™” slot
You can copy the MP3-format audio file to a “Memory Stick™” media inserted in your computer’s “Memory Stick™” slot.
First, in the “Memory Stick™” media’s PALM folder, create a folder entitled PROGRAMS, and then create a folder entitled MSAUDIO within the PROGRAMS folder. Then copy the desired MP3-format audio file(s) to the MSAUDIO folder. Insert the “Memory Stick™” media into your CLIÉ™ handheld to play back the audio files using the Audio Player application.
